Description

The SQLFileInsertReceiver creates a file with standard ANSI SQL insert statements.


Parameters

The DelimitedFileReceiver requires that the following parameters are defined:

  • path - Defines the directory path where to store the output file.
  • tableName - Defines the name of the SQL table as it is defined in the database.
  • fileName - Defines the name of the file the SQL statement will output to.
  • batchCount - Defines the number of insert statements written to file in each batch.
  • appendToFile - Determines whether the file will open in append mode. If true, SQL statements will be appended to the file; otherwise, the file will be overridden.
  • uniqueAttribute - Defines a Domain Attribute the Receiver will use to identify a unique value that has already been inserted into the file and prevents it from being inserted twice.
  • statementSeparator - Defines when a SQL statement has ended.
  • rowDelimiter - Defines the characters to delimit each row.

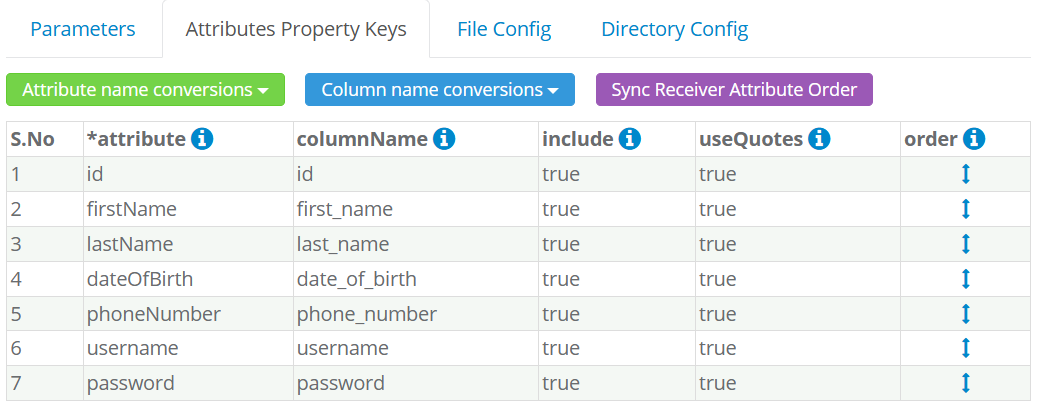

Receiver Attribute Property Keys

The Receiver defines two property keys that can be modified on any of its associated Domain Attributes:

  • columnName - Defines the actual column name used in the database table.
  • include - Determines if the Attribute will be included in each SQL statement.
  • useQuotes - Determines if a value should be quoted. Sometimes a numeric value should be quoted (e.g. SSN).


Row Delimiter

There are two rowDelimiter types:

  • UNIX/Linux/Mac-LF - used for Mac, Unix & Linus machines.
  • Windows-CR/LF - used for Windows machines.


Example Output

The following is an example output of SQL inserts statements into a user table.


insert into user(id,first_name,last_name,middle_initial,emailAddress) values ('1','Penelope','Spaeth','F','user@email.com');
insert into user(id,first_name,last_name,middle_initial,emailAddress) values ('2','Carla','Elledge','U','user@email.com');
insert into user(id,first_name,last_name,middle_initial,emailAddress) values ('3','Tori','Adamson','R','user@email.com');

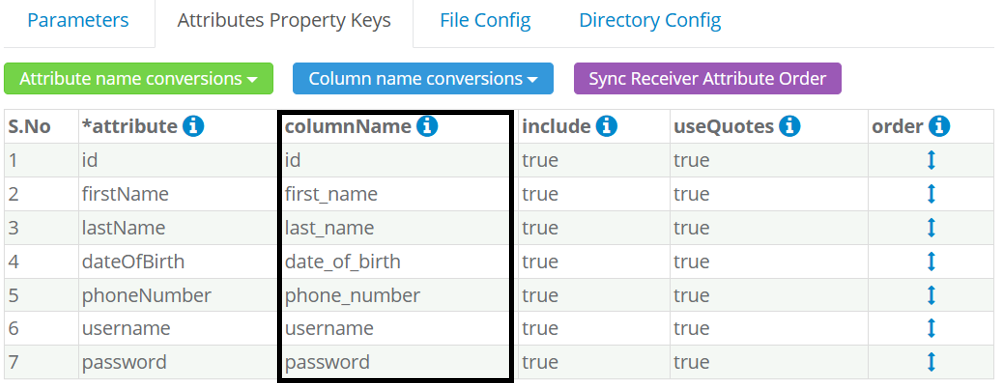

Column Name

Make sure to pay attention to the naming of the column names for each attribute, that they match the column name as it is defined in the database table.
