Model

Description

The Domain Referencing Wizard can be used to quickly validate and set up Parent-Child-Sibling Relationships after importing a data model into a Project Version of a Project. Follow the steps below to validate/set up the required relationships for imported Domains.

How to Access the Domain Referencing Wizard

The Domain Referencing Wizard can be accessed in two ways:

Method 1:

Select a Project within the Project Dashboard.
Click on the Domain Referencing Wizard icon within the Project Versions Pane.

Method 2:

Select a Project within the Project Dashboard.

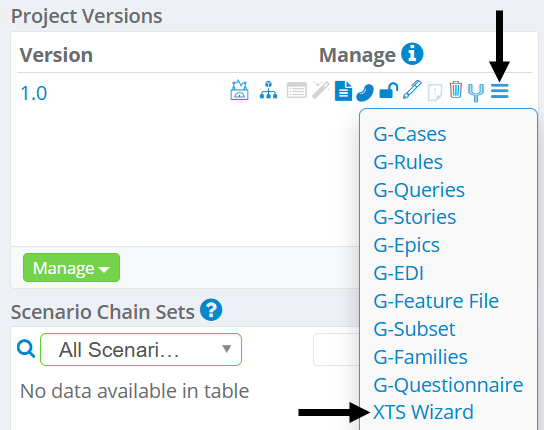

Next, expand the Self Serve Options Menu for a Project Version and select XTS Wizard.
Select the Domain Referencing Wizard.

How to Use the Domain Referencing Wizard

The Domain Referencing Wizard will appear as shown below and can be used to view each Domain and the Parent-Child-Sibling Relationships between the Domains.
Use the filter options to search by Name, filter out Root Domains, or further customize what is displayed.
Select a Domain to review within the first pane.

Click on a radio button in the Parent column to set a Domain as the Parent.
If a Domain is set as the parent, then the Siblings checkbox will be marked automatically for all other Domains.

Note: A parent can also be removed by clicking on the Minus (-) icon.

The Domain will automatically be marked as "Reviewed" if changes are made to the Parent-Child-Sibling relationships.
The Reviewed Column will have a checkmark, and the graph below the Domain Relationship configuration will automatically update.
If no changes have been made, click on the Mark as Reviewed button to mark the Domain as "Reviewed.".

Note: Click on the Mark as Not Reviewed button for the Domain to remove the checkmark within the Reviewed Column.
The Domain Referencing Wizard will appear as shown below after the Domains have been reviewed:
