Description

The Receiver Dashboard can be used to manage Parameters and Attributes Property Keys for Domain Receivers. Receivers can also be added and removed as needed for a Domain.

In This Article

• How to Access the Receiver Dashboard
• Viewing and Managing Added Receivers
• Receiver Dashboard Options
• Parameters Tab
• Attribute Property Keys Tab
• File Directory Tab
• Directory Config Tab

How to Access the Receiver Dashboard

The Receiver Dashboard can be accessed by selecting a Receiver in the Domain Receivers Pane within the Domain Dashboard.

Viewing and Managing Added Receivers

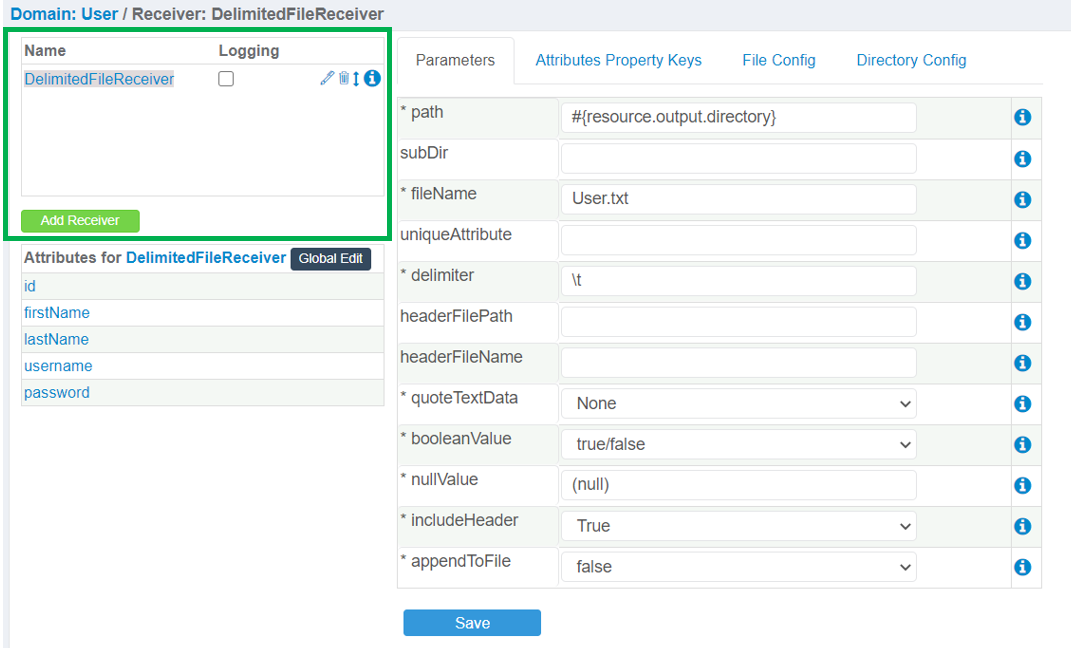

Users can see and manage each assigned Receiver in the upper left corner of the Receiver Dashboard. Here, users can do the following:

• Add and Remove Receivers
• Enable or Disable Logging
• Modify Receiver Parameters and Property Keys
• Set up Dynamic File and Directory Configuration (for some Receivers)
• Change the Order of Assigned Receivers

Receiver Dashboard Options

The following icons, buttons, and checkboxes can be found within the Receiver Dashboard:

Options	Description
	The Add Receiver button can be used to add a new Receiver to the Domain. Click here for more information.
	The Global Edit button can be used to open the Global Edit dialog window, which can be used to edit multiple Attribute Property Key values at once for the Receiver.
	The Logging option can be enabled when the loopCount is greater than 10,000 records.  A checkmark means it is enabled. When enabled and running a Scenario on your system, you will see logs for every 10,000 records that have been processed.
	Edit the Receiver's Name.
	Remove the Receiver from the Domain.
	Change the position of a Receiver within the pane. Click on the icon and drag upward or downward to change the order of Receivers within the pane.  The order of the Receivers within this pane determines which output format is generated first when a Scenario is run.
	The Info icon can be used to view more information about an item within the dashboard.

Parameters Tab

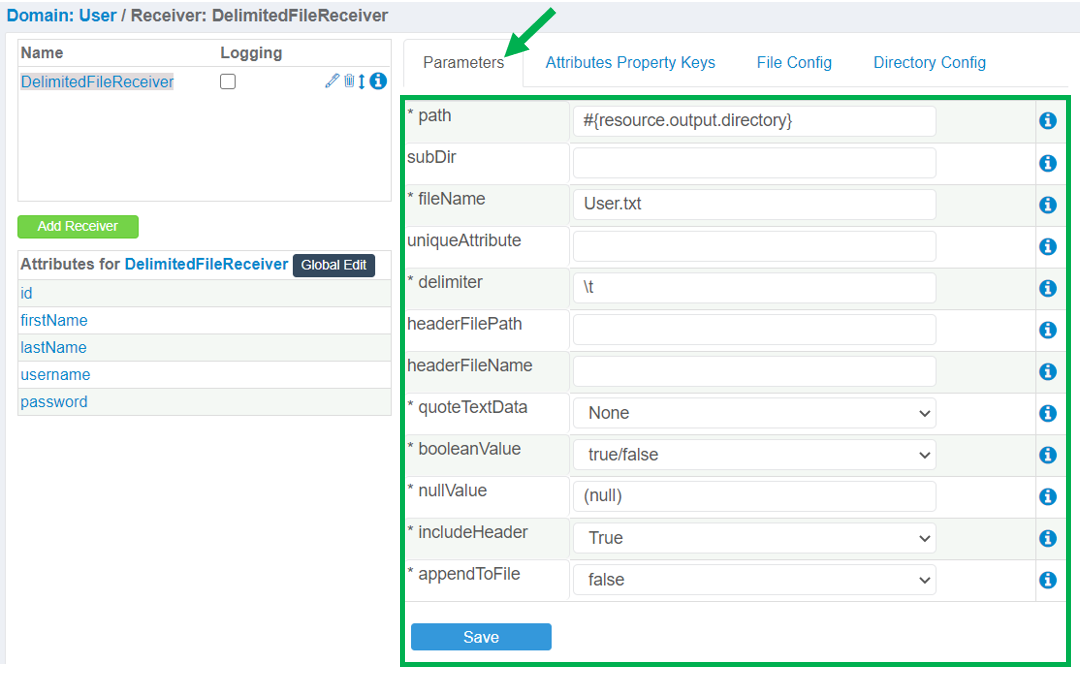

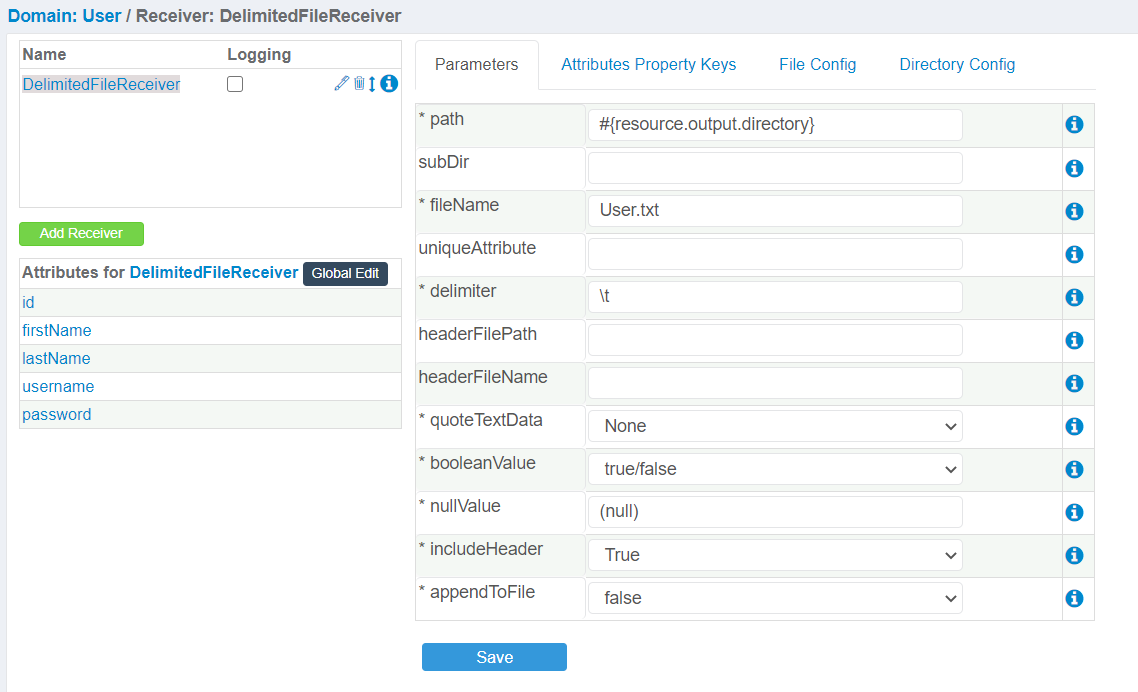

Parameters for the selected Receiver will appear on the right side of the Receiver Dashboard within the Parameters Tab. Please note that the displayed Parameters vary per Receiver. The image below is an example.

Parameters with an asterisk* are required to download and run a Scenario with the assigned Receiver. All other parameters are optional.

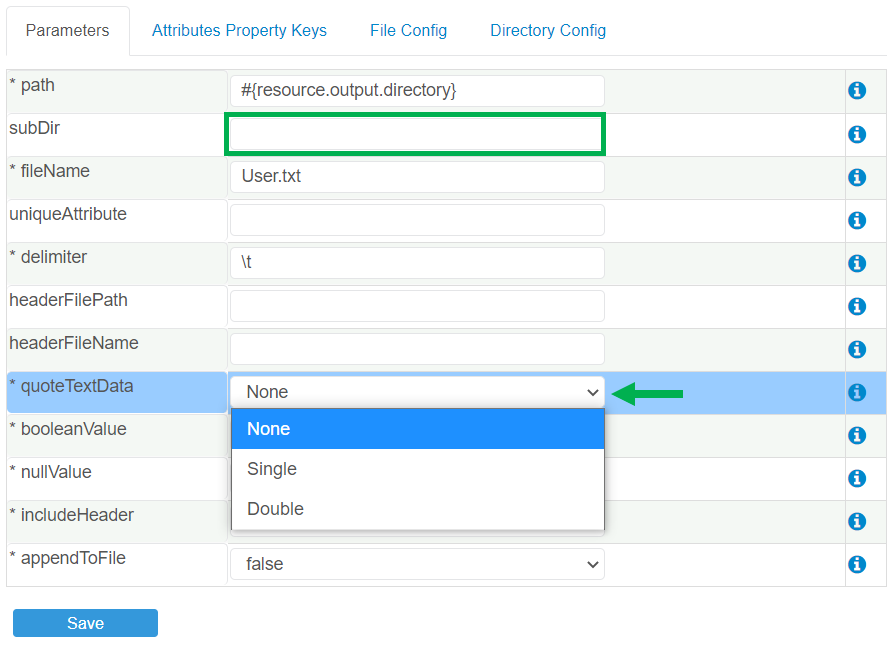

Use each text field or drop-down menu to make changes. Remember to click the Save button once finished.

Attribute Property Keys Tab

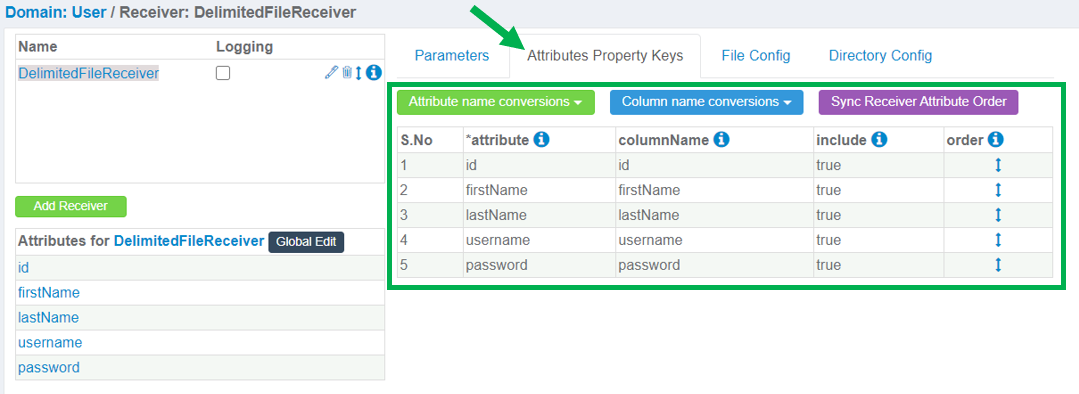

The Attributes Property Keys Tab can be used to view and manage a Receiver's Attributes Property Keys. Displayed property keys will vary per Receiver.

Use the Global Edit button or click on an individual Attribute to modify its property keys.

Attributes Property Keys Tab - Icons, Buttons, and Menus

Option	Description
	The Attribute Name Conversions drop-down menu can be used to configure Attribute Name Conversions for all Attributes. Camel Case is the default configuration.
	The Column Name Conversions drop-down menu can be used to set Column Name Conversions for all Attributes.
	The Sync Receiver Attribute Order button can be used to sync the order of Receiver Property Key Attributes with the Domain's Attributes order.

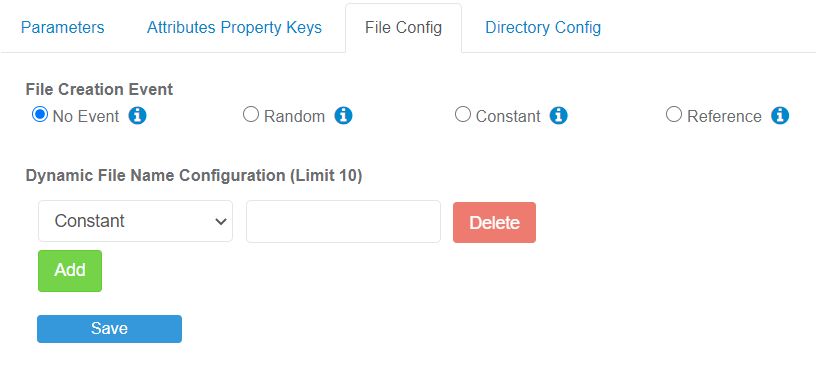

File Directory Tab

The File Configuration Tabs, when available for a Receiver, can be used to customize the following:

• The number of records in each generated Output file.
• The naming convention of the Output File.

Note: The File Config Tab is not available for every Receiver. For more information about the File Config Tab, click here.

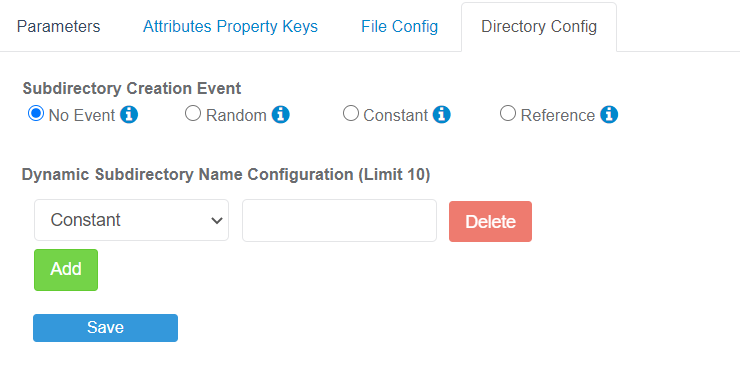

Directory Config Tab

The Directory Config Tab, when available for a Receiver, can be used to customize the following:

• The number of files in each generated Output Subdirectory.
• The naming convention of the Output Subdirectory.

Note: The Directory Config Tab is not available for every Receiver. For more information about the Directory Config Tab, click here.
