Description

The XMLReceiver exports Domain data in XML format.

In This Article

• Receiver Parameters
• Receiver Attribute Property Keys
• Use Case Example

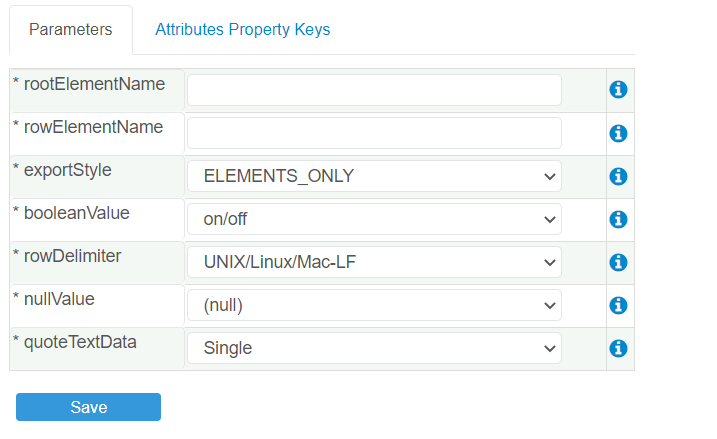

Receiver Parameters

The following parameters can be defined for the XMLReceiver. Items with an asterisk (*) are required:

• rootElementName* - The master element that contains the row elements.
• rowElementName* - The name of the primary element for each XML row.
• exportStyle*- Determines how the XML is formatted.
  • ELEMENTS_ONLY
  • ATTRIBUTES_ONLY
  • ELEMENT_VALUE


• booleanValue* - Format a Boolean object with the selected mask.
• rowDelimiter* - Defines the bytes that delimit each row.
• nullValue* - Represents NULL value.
• quoteTextData*- Defines the character to use when quoting text data.
  • Single
  • None
  • Double

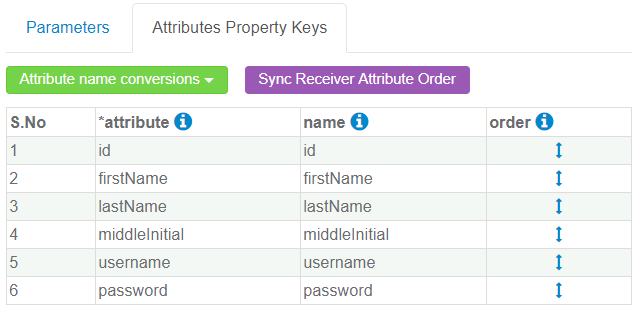

Receiver Attribute Property Keys

The Receiver defines one property key that can be modified on any of its associated Domain Attributes:

• name - Represents the element or attribute name of the value for the given Attribute.
