The GenericSQLInsertReceiver is used to insert a Domain's generated data directly into a database table via a JDBC connection.

In This Article

Receiver Parameters

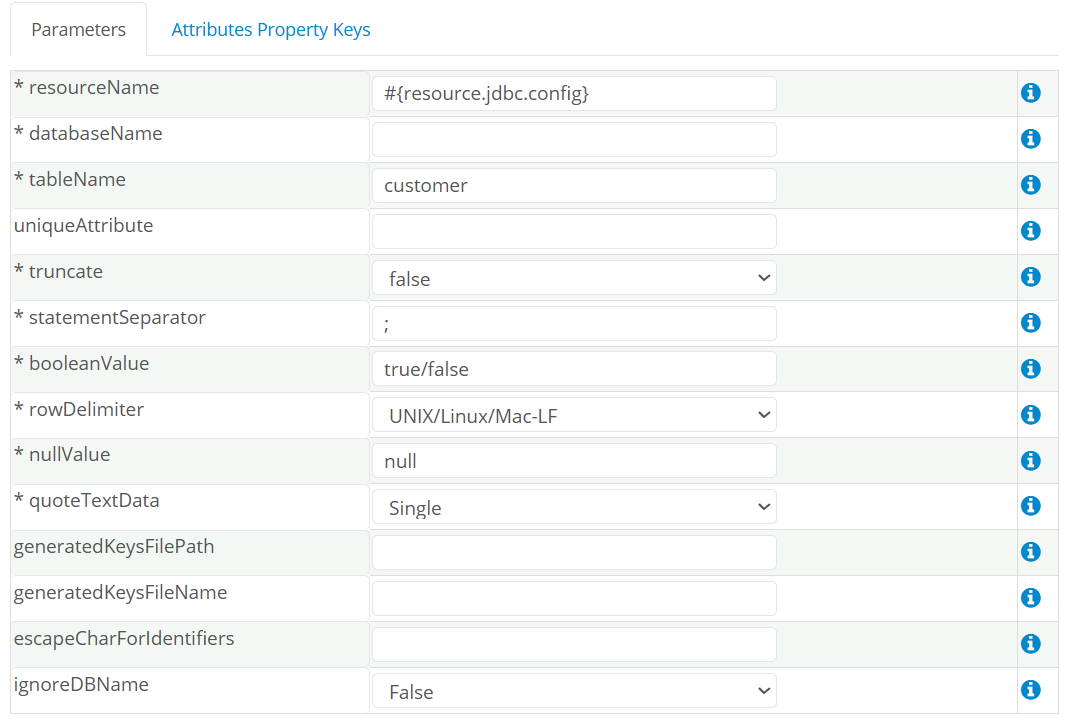

The following parameters can be defined for the GenericSQLInsertReceiver. Items with an asterisk (*) are required.

  • resourceName* - Defines the name of the resource that contains the database connection information on a user's local machine.
  • databaseName* - Defines the name of the database to access.
  • tableName* - Defines the name of the database table to insert rows into.
  • uniqueAttribute - Defines a Domain Attribute the Receiver will use to identify a unique value that has already been inserted into the table to prevent duplicate data entry where a unique constraint is required.
  • truncate* - Truncates the table before inserting rows by executing a 'delete from table' statement.
  • statementSeparator* - Defines when a SQL statement has ended.
  • booleanValue* - Format a Boolean object with the selected mask.
  • rowDelimiter* - Defines the bytes that delimit each row.
  • nullValue* - Represents Null value.
  • quoteTextData* - Defines the character to use when quoting text data.
  • generatedKeysFilePath - Defines the path where the file having generated keys will be stored.
  • generatedKeysFileName - Defines the file name in which generated keys will be stored.
  • escapeCharForIndentifiers - Escape character is used to wrap identifiers: schema name, table name, and column name. The parameter is useful when identifiers contain special characters like ?, ', ", etc.
  • ignoreDBName - By default, ignoreDBName is set to False which appends the database name in the insert query. In order to not to have database name appended in the insert query, set the ignoreDBName to True.

Escape Character Cases

Case 1

Parameter Value: '

Example: 'db name'.'table name'.'column name'

Case 2

Parameter Value: []

Example: [db name].[table name].[column name]

Case 3

Parameter Value: #$#

Example: #$db nam#'.#$table name#.#$column name#

Note: Escape character for identifiers depends on database configuration. Please check with your DBA to find out the appropriate escape character for your database, if required.

Column Data Types

This Receiver uses a set of standard data types to populate columns within most database tables; these column data types should successfully work with most databases that allow for data insertion via JDBC.  The column data types are the following:

  • String - gets translated to a VARCHAR
  • Boolean - native data type
  • BigDecimal - gets translated to a DECIMAL
  • Date - native data type
  • Double - native data type
  • Float - native data type
  • Integer - native data type
  • Long - gets translated to a BIGINT
  • Time - native data type
  • Timestamp - native data type

JDBC Configuration File

This Receiver uses a configuration file, located on the user's local computer, as a resource to attain the necessary information for connecting to a user's local database via JDBC. The required properties to connect to a database via JDBC are the following:

  • driver - the path and file name of the JDBC library for the database to connect to.
  • user - the name used to connect as a user to the database.
  • password - the password used to connect as the given user to the database.
  • url - the JDBC universal resource locator required to connect to the given database.
  • batchCount - defines the number of rows of generated data that are batched together before writing to the database.

Example JDBC Configuration File

Below is an example of a JDBC configuration file defined to connect to a MySQL database called, acme:


Receiver Attribute Property Keys

The Receiver defines three property keys that can be modified on any of its associated Domain Attributes:

  • columnName - Defines the name of the column as it is in the actual database table.
  • columnType - Defines the column data type.
  • include - Defines if the column should be included or excluded from the insert statement.

Example Setting of Receiver Property Key Values

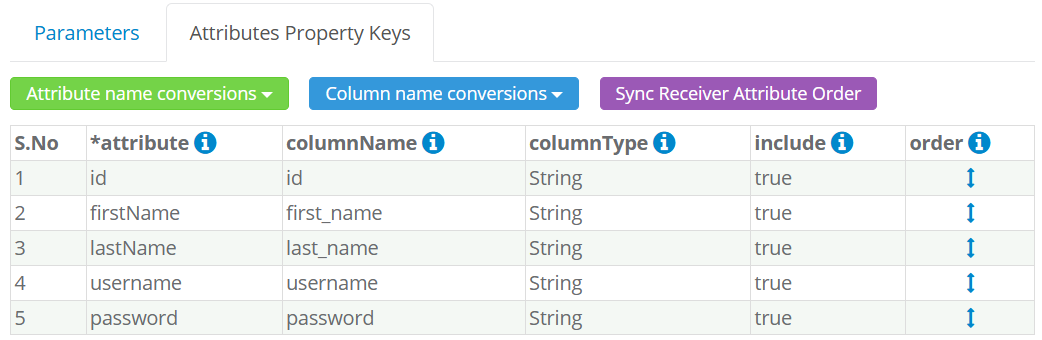

The example image below shows the property key view for the set of Attributes of a Domain using the GenericSQLInsertReceiver.

Special Note - Error Inserting Data into PostgreSQL

The following error(s) may be received when attempting to insert test data into PostgreSQL:

column "columnName" of relation "relation name" does not exist
column "columnName" does not exist

PostgreSQL follows SQL standards, and identifiers such as table names/column names are forced to lowercase unless surrounded by double quotes.

Example 1 (Without Quotes)

APP_USER becomes app_user

Example 2 (With Quotes)


To resolve this issue, users can try with double quotes or change all column names within the Receiver's Attribute Property Keys to lowercase (shown below).
