Description

The H2InsertV2Receiver is used to insert a Domain's generated data directly into an H2 database table via a JDBC connection.

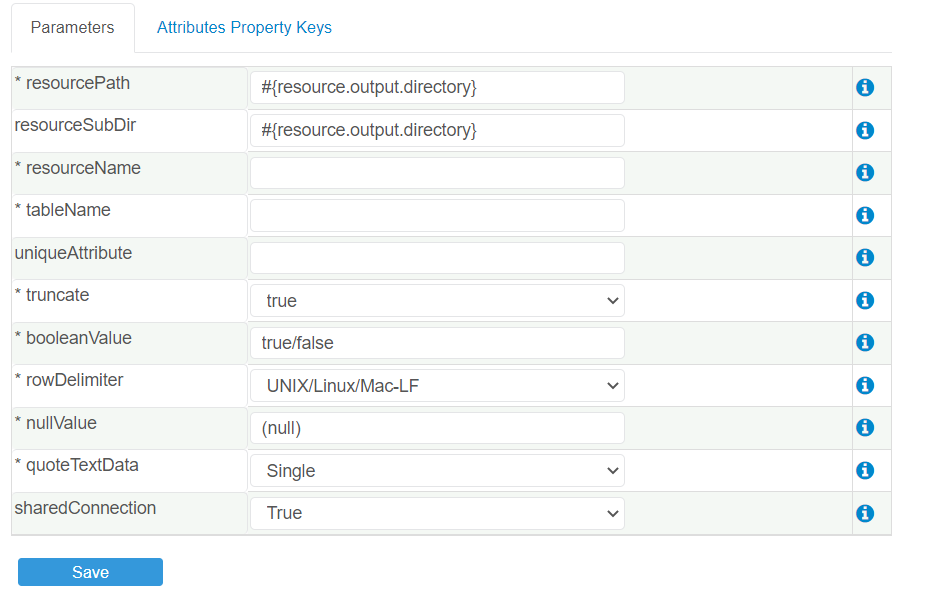

Parameters

The following parameters can be defined for the H2InsertV2Receiver. Items with an asterisk (*) are required.

  • resourcePath* - Defines the Directory path where the Resource is located.
  • resourceSubDir - Defines an optional sub-directory under the resourcePath where the resource file exists.
  • resourceName* - Defines the name of the resource that contains the database connection information on a user's local machine.
  • tableName* - The name of the database table to insert rows into.
  • uniqueAttribute - Defines a Domain Attribute the receiver will use to identify a unique value that has already been inserted into the table to prevent duplicate data entry where a unique constraint is required.
  • truncate* - Truncates the table before inserting rows by executing a 'delete from table' statement.
  • booleanValue* - Format a Boolean object with the selected mask.
  • rowDelimiter* - Defines the bytes that delimit each row.
  • nullValue* - Represents a Null value.
  • quoteTextData* - Defines the character to use when quoting text data.


Column Data Types

This Receiver uses the following column data types:

  • VARCHAR
  • BOOLEAN
  • DECIMAL
  • DATE
  • CHAR
  • VARCHAR_IGNORECASE
  • INT
  • IDENTITY
  • BIGINT
  • DOUBLE
  • TIME
  • TIMESTAMP


JDBC Configuration File

This Receiver uses a configuration file, located on the user's local computer, as a resource to attain the necessary information for connecting to a user's local database via JDBC. The required properties to connect to a database via JDBC are the following:

  • driver - The path and file name of the JDBC library for the database to connect to.
  • user - The name used to connect as a user to the database.
  • password - The password used to connect as the given user to the database.
  • url - The JDBC universal resource locator required to connect to the given database.
  • batchCount - Defines the number of rows of generated data that are batched together before writing to the database.

   driver=<JDBCDriverClassName>
   user=<userToConnectToDatabase>
   password=<passwordToConnectToDatabase>
   url=<URL>/<databaseName>
   batchCount=1000

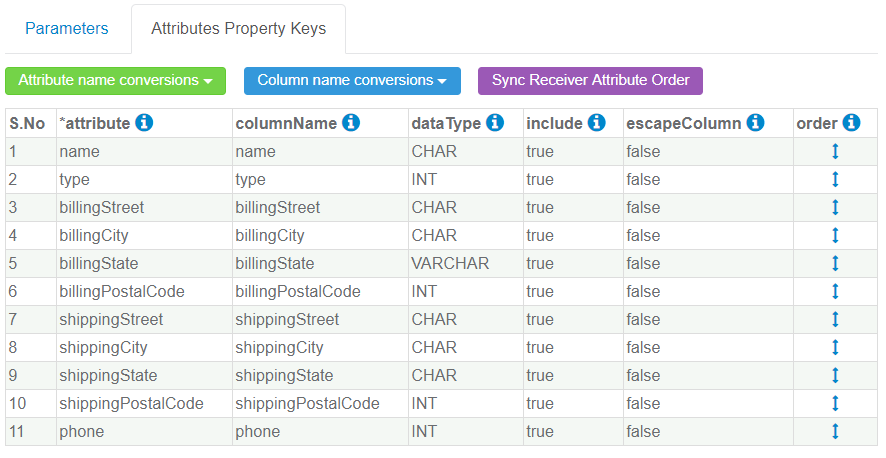

Receiver Attribute Property Keys

The Receiver defines four property keys that can be modified on any of its associated Domain Attributes:

  • columnName - Defines the name of the column as it is in the actual database table.
  • dataType - Defines the column data type.
  • include - Defines if the column should be included or excluded from the insert statement.
  • escapeColumn - If true, the column name gets enclosed by double quotes when the Receiver creates a prepared insert statement. If false, the column name is not enclosed in double quotes.


Escape Column Example

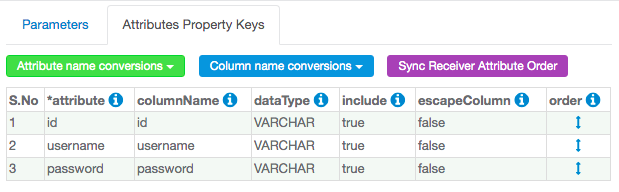

A Users table contains an id, username, and password column. When escapeColumn is set to false for all Attributes, the Prepared Statement would appear as below:


insert into table Users (id. username, password) values (?,?,?)

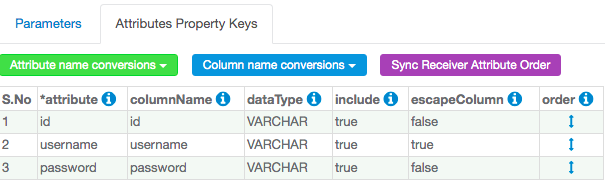

When escapeColumn is set to true for the username Attribute, the Prepared Statement will appear as shown below:


insert into table Users (id, "username", password) values (?,?,?)
