Description
G-Families are discovered and managed within the G-Families Management Dashboard (shown below). This dashboard can be used to discover and manage new families, create test data cases for Domains within a discovered family, and view GenRocket Domain/ER diagrams based on discovered families. To learn more about G-Families, click here.
In This Article
- How to Access G-Families
- G-Families Icons and Buttons
- GenRocket Domain Mode View (Default View)
- Entity Relationship Mode View
- How to Change What is Visible in the View
How to Access G-Families
G-Families can be accessed in one of two ways:
Method 1 - JSON, DDL, and XSD Imports
- Select a Project within the Project Dashboard.
- Next, expand the Self Serve Options Menu and select G-Families.
Method 2 - XTS Imports
- Select a Project within the Project Dashboard.
- Next, expand the Self Serve Options Menu for a Project Version and select XTS Wizard.
- Select the Domain Family Wizard within XTS Wizard.
G-Families Icons and Buttons
The following icons and buttons are available within the dashboard. Please note that some will not be available until G-Families have been discovered for the imported Domains, and Cases have been created for each discovered G-Family:
Icon/Button | Description |
 | Find new G-Families based on the imported Domains and set Parent/Child/Sibling Relationships. |
 | Download the currently displayed image (GenRocket Domains or ER Diagram). |
| View and access test data cases for a G-Family. Note: This icon will not be present until cases have been created for a G-Family. |
 | Create cases for a discovered G-Family. |
 | Edit the G-Family name. |
 | Delete a G-Family. |

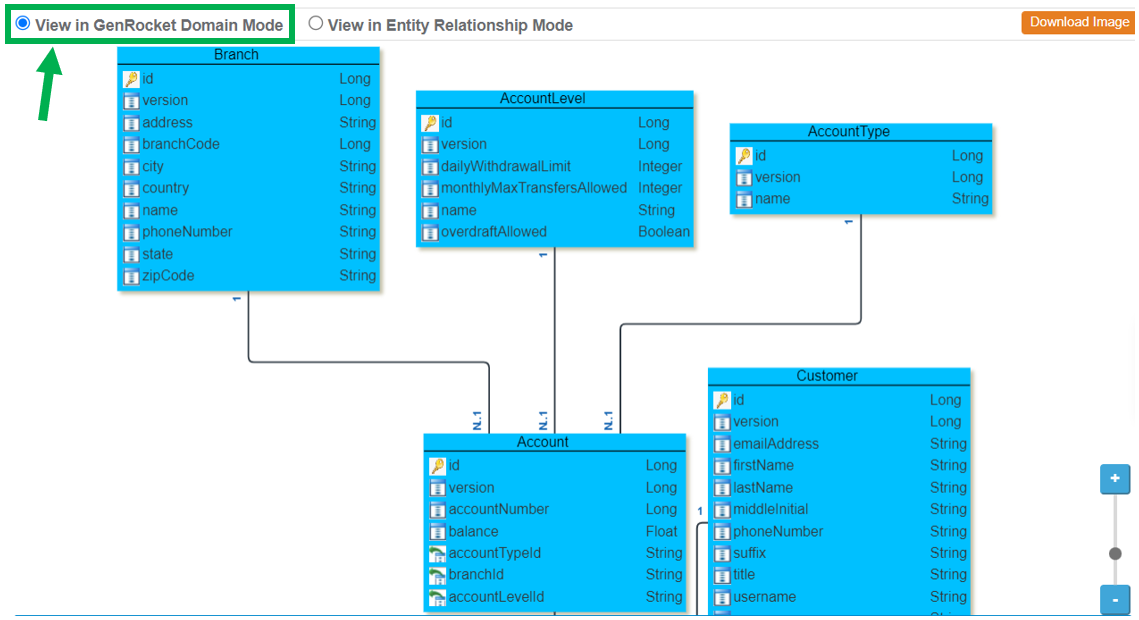

GenRocket Domain Mode View (Default View)
This view can be used to view each Domain within a selected Family and the relationships between those Domains.

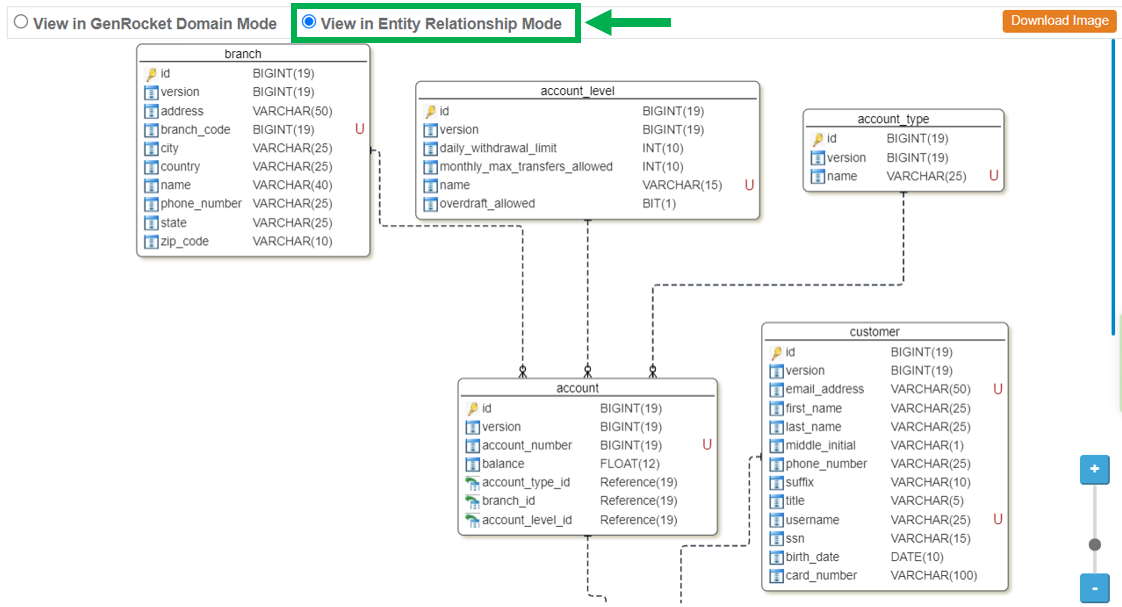

Entity Relationship Mode View
This view can be used to view an ER Diagram for the selected G-Family. This diagram shows the actual names of the tables within the database.
How to Change What is Visible in the View

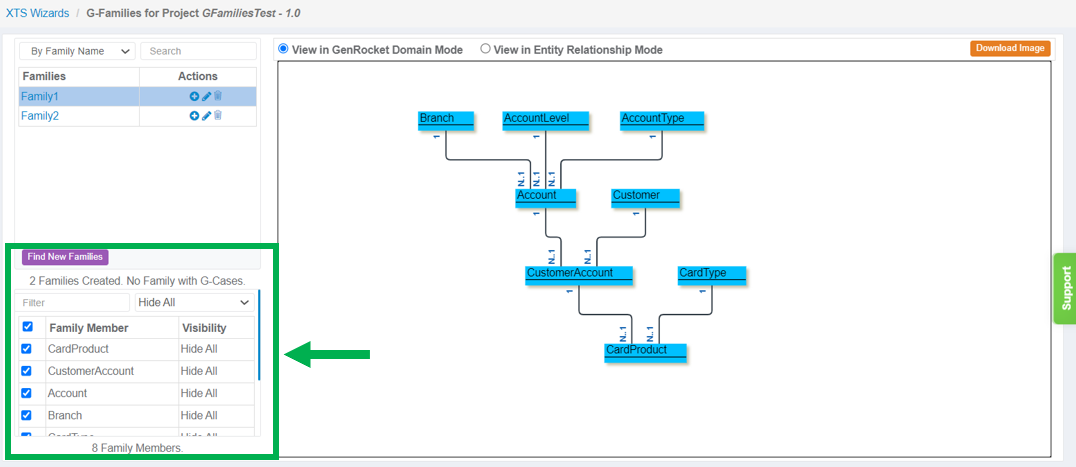

The bottom left pane can be used to change what information is displayed for a selected G-Family within the GenRocket Domain or ER Diagram:
- Attributes
- Primary Keys
- Foreign Keys
Everything is hidden by default. This pane can be used to change what is displayed for all Domains or selected Domains within a selected G-Family.

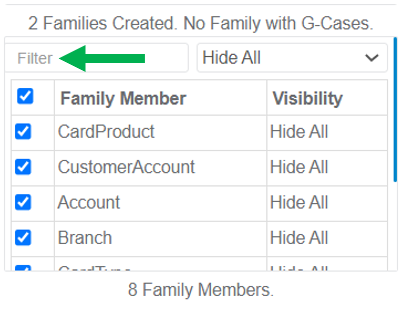

Visibility options can be changed for all Domains or selected Domains. The Filter Field can be used to locate a specific Domain within the G-Family.

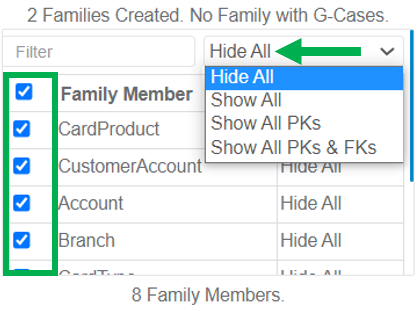

Use the checkboxes to select or deselect Domains within the selected G-Family. Then use the Visibility Menu to change what is displayed:
- Hide All – Attributes, Primary Keys, and Foreign Keys
- Show All – Attributes, Primary Keys, and Foreign Keys
- Show All PKs – Primary Keys
- Show All PKs and FKs – Primary Keys and Foreign Keys

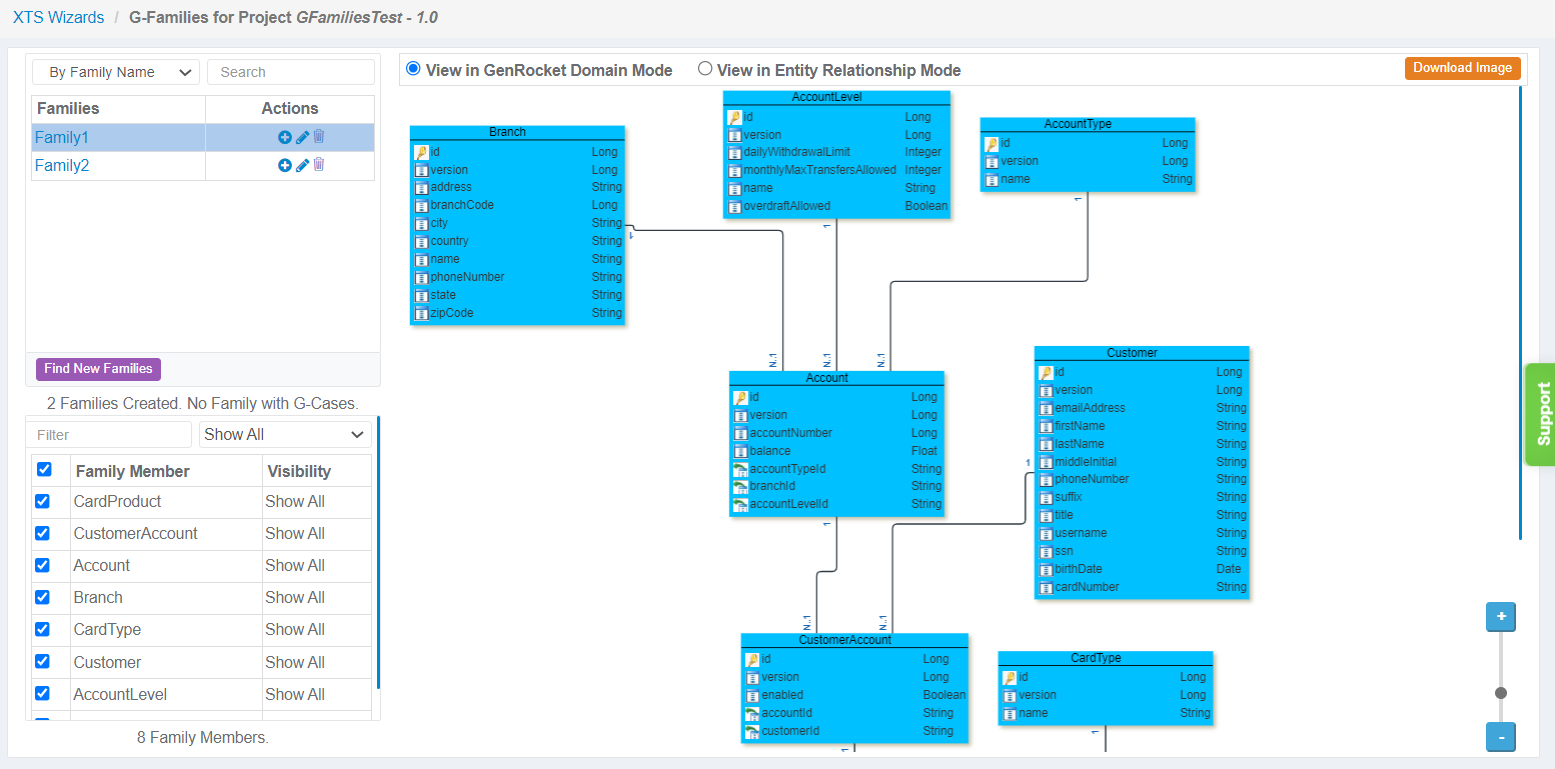

In the example below, “Show All” has been selected for all Domains within the selected G-Family.
