What is the XTS Wizard?

The XTS Wizard contains a set of easy-to-use wizards that can be used to import an XTS file into a selected Project Version of a given Project and complete important setup steps after the import has been completed.

XTS is a multi-step process that includes important setup steps that are accomplished using multiple wizards:


In This Article


When should XTS Wizard be used?

  • Any time you need to import an XTS file into a selected Project Version of a given Project.


Who should use XTS Wizard?

  • Data Architects - This persona will complete all steps for most organizations.
  • Test Data Engineers (TDEs) - Alternative persona when a Data Architect is not present.



How to access XTS Wizard

The XTS Wizard can be accessed in two ways:


Method 1:

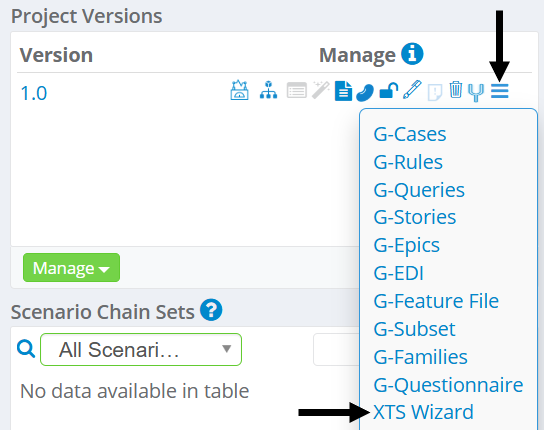

  • Select a Project within the Project Dashboard.
  • Next, expand the Self Serve Options Menu for a Project Version and select XTS Wizard.



Method 2:

  • Expand the New Domain drop-down menu and select Import from XTS.


How does XTS Wizard Work?

XTS Wizards currently contains several wizards that can be used to import an XTS file, validate Parent-Child-Sibling relationships, tune Generators, assign Receivers, and more.


For Steps 1-6, the user must mark the step as completed. Additional wizards will be available once a step has been marked as completed.



The following links can be used to view step-by-step instructions for each available XTS Wizard:


Step Number/ XTS Wizard

Description

Step 1: XTS Import WizardImport an XTS File into a selected Project Version in a Project.
Step 2: Domain Referencing WizardVerify and set Parent-Child-Sibling relationships between imported Domains.
Step 3: Generator Tuning WizardAdjust Generators across multiple Domains and Attributes to fine-tune test data accuracy and view statistics.
Step 4: Receiver Assignment WizardAssign a selected Receiver to a filtered set of Domains.
Step 5: Scenario Assignment WizardCreate and assign a Scenario to a filtered set of Domains.
Step 6: Domain Family Wizard (G-Families)Filter and categorize Domains into families of related Domains.
Edit: Attribute Modification WizardGlobally modify Attribute Parameters within a filtered set of Domains.
Edit: Receiver Modification WizardFilter to a set of Domains, select a Receiver, modify its parameters, and update all matching Receiver parameters within the filtered set of Domains.
Delete: Receiver Delete WizardFilter to a set of Domains, select a Receiver, and remove the Receiver from each Domain.
Delete: Scenario Delete Wizard

Filter to a set of Domains, select one or more Scenarios, and have the matching Scenarios removed from each Domain.
